A wide 178 horizontal and 178 vertical viewing angle
Supports HDMI and VGA signal input
Anti-blue light technology helps protect your eyes from strain and injury

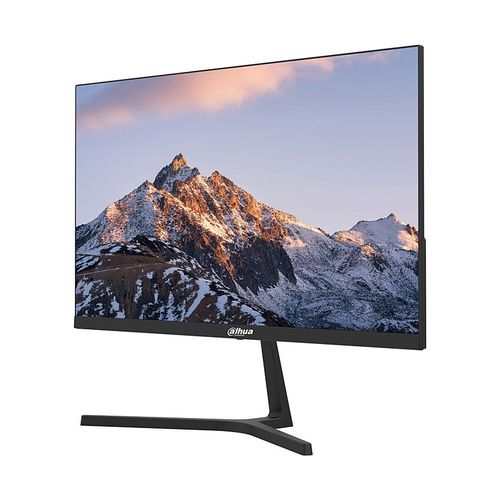

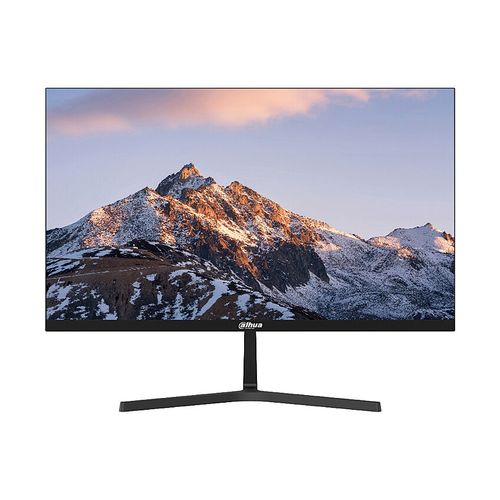

Elegant thin-frame design with a sturdy metal base
Specifications
Model: DHI-LM24-B201S
LCD Technology: IPS
Backlight: ELED
Screen Size: 23.8 inch
Aspect Ratio: 16:9
Viewing Size: 527.04 (H) 296.46 (V) mm
Screen-to-Body Ratio: =90%
Viewing Angle: 178 (H) / 178 (V)
Display Mode: Horizontal
Pixel Pitch: 0.2745 mm 0.2745 mm
Pixels Per Inch: 92.56
Resolution: 1920 (H) 1080 (V)
Refresh Rate: 100 Hz
Display Color: 16.7M colors
Color Gamut: 72% NTSC
Brightness: 250 cd/m (max)
Contrast Ratio: 1000:1
Response Time: OD 5 ms
Lifespan: 30,000 hrs
Surface Treatment: Haze 25%, 3H
Low Blue Light: Software blue light protection
Device Ports
Input: 1 HDMI 1.4 (1920 1080@100 Hz), 1 VGA
Output: 1 Audio out
Speaker: 2 1 W
Power & Environmental Conditions
Power Supply: 12 VDC, 2.5 A
Power Consumption: 17 W (basic), 19 W (typ.), 21 W (max)
Standby Power Consumption:
Specifications
General
Manufacturer
Dahua
Brand
Dahua
MPN
DHI-LM24-B201S
All Supplier Codes
DHILM24B201S
Barcodes
6923172544988
GTIN
6923172544988
Information on technical characteristics, the delivery set, the country of manufacture and
the appearance
of the goods is for reference only and is based on the latest information available at the
time of publication.
