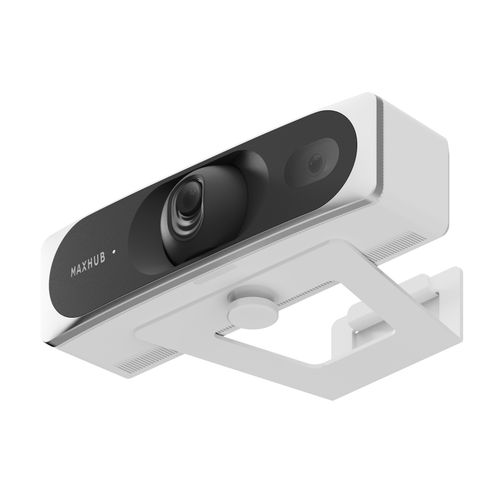

Camera Maxhub Capture System Student CameraThe EW30S Student Camera brings cutting-edge technology to the educational environment, designed to capture every detail of the classroom experience. Combining a wide range of powerful features, the EW30S ensures that both panoramic and close-up views are delivered with exceptional clarity. This dual-lens camera is the perfect tool to enhance interactive learning, foster engagement, and ensure every moment is captured in high definition.Features:
Dual-Lens Integration: Featuring a combination of a panoramic lens and a close-up lens, it allows for comprehensive coverage of the entire classroom while also providing highdefinition close-up shots.
Intelligent Tracking: Equipped with advanced image recognition and tracking algorithms, it seamlessly tracks subjects without the need for auxiliary positioning cameras or tracking hosts.
Micro Gimbal Design: 45 horizontal rotation with auto-focus for clear images, complemented by electronic gimbal for enhanced views.
Ultra-Clear Close-Ups: High-resolution close-up lens with 8MP for educators and 42 student lens for crystal-clear images.
Specifications:
Close-up Camera:.
Sensor Type 1/2.7 inch, CMOS, 8.31 million pixels.
Scanning Method Progressive.
Mount Type M12.
Lens Focal Length f = 7.2 mm.
Zoom 3x digital zoom.
Minimum Illumination 0.5 Lux @ (F2.2, AGC ON).
Electronic Shutter 1/30 s ~ 1/10000 s.
White Balance Auto, indoor, outdoor, one-touch, manual, specified color temperature.
Digital Noise Reduction 2D, 3D digital noise reduction.
Signal to Noise Ratio = 55 dB.
FOV HFOV: 42.
Rotation Range Horizontal: 45 Vertical: +5 ~ -30.
Rotation Speed Range Horizontal: 60/s Vertical: 30/s.
Horizontal & Vertical Flip Supported.
Feature Backlight Compensation Image Freeze.
Preset Positions 255.
Preset Accuracy 0.2.
Panoramic Camera:.
Sensor Type 1/2.7 inch, CMOS, 4.68 million pixels.
Scanning Method Progressive.
Mount Type M12.
Lens Focal Length f = 2.2 mm.
Minimum Illumination 0.5 Lux @ (F2.2, AGC ON).
Electronic Shutter 1/30 s ~ 1/10000 s.
White Balance Auto, indoor, outdoor, one-touch, manual, specified color temperature.
Digital Noise Reduction 2D, 3D digital noise reduction.
Signal to Noise Ratio = 55 dB.
FOV HFOV: 110.
Horizontal & Vertical Flip Supported.
Feature Backlight Compensation Image Freeze.
Other:.
Supported Operating Systems Windows: Windows 7 (supports 1080p and below), Windows 8.1, Windows 10 and above macOS: macOS 10.10 or above Google Chromebook: Version 29.0.1547.70 or above Linux: Requires UVC support.
Hardware Requirements 2.4 GHz Intel Core 2 Duo processor or higher 2 GB of RAM or higher USB 3.0 or USB 2.0 port.
Color Space YUY2 / MJPEG / H.264.
Video Format Various frame rates and resolution, 4K maximum.
USB Audio Supported.
USB Video Communication Protocol Supports UAC1.0, 48K sampling rate maximum.
RJ45 1 10M/ 100M adaptive ethernet port, PoE supported (802.3af).
Line IN 1 3.5 mm audio interface.
Power Port 1 DC005 type (DC In 12V).
Button 1 Reset button.
Product Dimension (W D H) 248 85 66 mm.
Net Weight 0.52 Kg.
Wall Mount Bracket 1.
Bracket Installation Parts 1.
Quick Start Guide 1.
Specifications
General
Manufacturer
Maxhub
Brand
Maxhub
MPN
EW30S
All Supplier Codes
MHEW30S
Barcodes
GTIN
