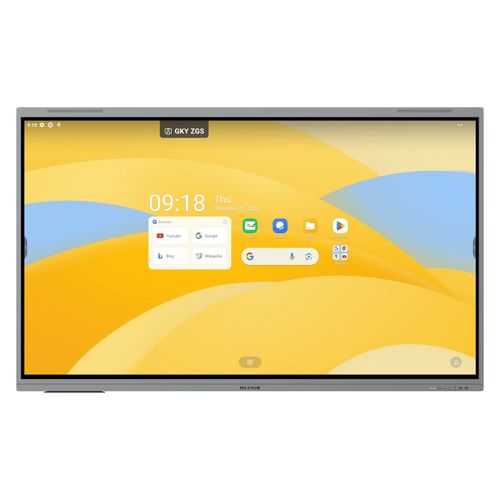

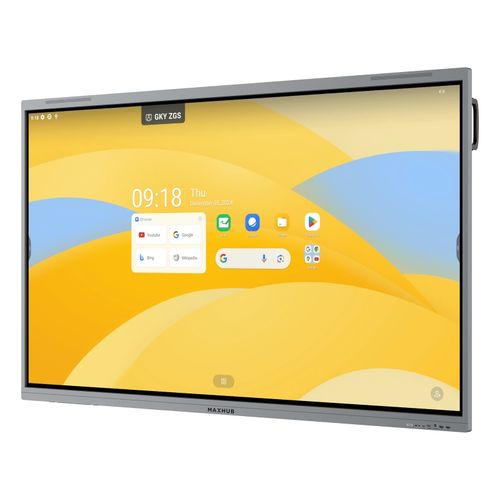

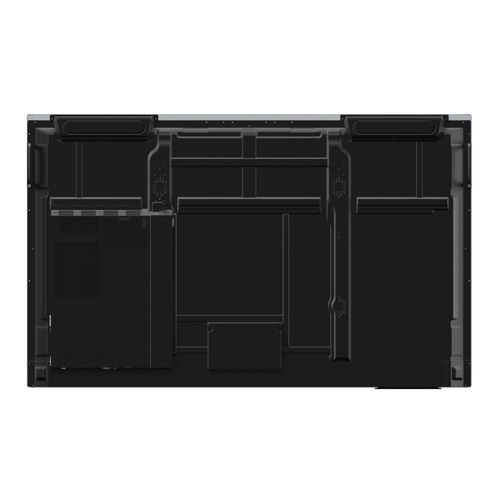

Maxhub E Series Interactive Flat Panel 65'

Interactive Flat Panel Maxhub E Series 65'
MAXHUB E6530 shines as an exceptional choice, tailored specifically for educational environments. It features a secure operating system for seamless integration with Google apps and accounts. The AI-powered SoC ensures smooth performance, while the advanced touchscreen allows for natural and precise writing. With versatile connectivity options, teachers can easily share content from multiple devices. MAXHUB E6530 enhances classroom collaboration and engagement, making it the perfect choice for educators and students.
Features:

• Prominent Display: 4K display, 10-bit color, High color accuracy, ?E=1.
• SkyWave Sound System: 2.2 channel speaker, 28W+218W output.
• Peak Performance: Octa-core CPU, independent NPU 8GB RAM, 128GB ROM.
• Precious Touch: MAXHUB Think&Ink Technology 40 touch points, 1.5 mm touch accuracy.
• Classroom Care: Hardware-grade eye care TV Low Blue Light and Flicker Free certification.
• Unparalleled Compatibility: Android 14 system, Google EDLA certificated.
• Convenient Connectivity: Full function USB-C, integrate 65W PD, video, audio, touch and internet access features.
• Comprehensive Software Suite: MAXHUB EDU OS V4, extensive education-tailored applications.

Specifications:

• Model: E6530.
• Diagonal Size: 65 inch.
• Display Area: 1428.48 (H) 803.52 (V) mm.
• Screen Level: A-Level.
• Brightness: 400 nits (typ.), 450 nits (max.).
• Contrast Ratio: 5,000:1 (typ.), 50,000:1 (dynamic).
• Color Depth: 1.07B (10bit).
• Color Gamut (typ.): 98% sRGB.
• Color Accuracy: ?E = 1.
• Surface Technology: Anti-glare, 25% haze.
• Aspect Ratio: 16:9.
• Resolution: 3840 (H) 2160 (V).
• Panel Type: VA.
• Viewing Angle: 178 (H/V).
• Response Time: 6.5 ms.
• Backlight Unit: DLED.
• Backlight Life (typ.): = 60,000 hours.
• Refresh Rate: 60 Hz.
• Glass: Zero parallax, 3 mm thickness, 9H tempered.
• Sensor: Ambient light sensor, Ambient color temperature sensor.
• Eyes Care: TV Flicker Free, TV Low Blue Light.
• Operating System: Android 14.0.
• Certification: Google EDLA certification.
• RAM: 8GB.
• ROM: 128GB.
• SoC Process: 8 nm.
• CPU: A724 + A534 octa-core, 2.2GHz.
• GPU: Mali G52 MC3.
• NPU: 6 TOPS.
• Touch Technology: MAXHUB Think&Ink System (Touch Return).
• Recognition: Infrared recognition.
• Touch Point: 40 points touch.
• Object Recognition Range: 3 mm.
• Accuracy: 1.5 mm.
• Response Time: = 5 ms.
• Writing Height: 3 mm.
• Compatibility: Windows11 / Windows10 / Windows8 / Windows7 / Android / Linux / Mac OS X / Chrome.
• OPS Slot For system upgrades.
• HDMI IN 3 Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC.
• DP IN 1 4K@60Hz, HDCP 1.4/2.2/2.3.
• USB 2.0 1.
• USB 3.0 4.
• Touch 2.
• AUDIO IN 1 3.5 mm Jack.
• VGA IN 1 Up to 1080P@60Hz.
• RS232 1 Baud rate 9600.
• RJ45 IN 1 10M/100M/1000Mbps.
• TF Card Port 1 Expandable up to 1TB.
• USB Type-C 2 Video/audio, touch, charging, LAN sharing (Front: 65W PD, Rear: 15W PD).
• HDMI OUT 1 Up to 4K@60Hz.
• AUDIO OUT 1 3.5 mm Jack.
• SPDIF 1 PCM output format.
• RJ45 OUT 1 10M/100M/1000Mbps.
• Front: 2 (USB 2.0 1, USB 3.0 1).
• Rear: 2 (USB 3.0 2).
• Bluetooth Input.
• Wi-Fi 6 802.11 ac/b/g/n/a/ax, 2.4GHz/5GHz.
• Wi-Fi Module Slot 1 Wi-Fi Module (SI07B).
• General Module Slot 1.
• Audio System: SkyWave Sound System 2.2.
• Sound Channel: 2.2.
• Speaker Power: 28W + 218W (output), 212W + 225W (maximum).
• Sound Pressure Level: 88 dB (1W, 1m).
• Dimension (LHD): 1490917100 mm.
• Shipping Dimension (LHD): 16281032185 mm.
• Thickness (Machine + Wall Mount): 129 mm (WIB9060H).
• Wall-hanging Screw: M48 mm VESA.
• Net Weight: 37.40 kg.
• Gross Weight: 46.55 kg.
• Power Supply: 100-240V~ 50/60 Hz 3.5A.
• Standby Consumption: = 0.5W.
• Typical Consumption: 130W.
• Power Saving: Energy Star Certification.
• OS: MAXHUB EDU OS V4.
• Screen Sharing.
• Whiteboard Tool.
• Device Management.
• MAXHUB Connect, MAXHUB Class Pro, MAXHUB Pivot.
• Google Apps: Google Play, Google Drive, Google Meet, Google Maps, YouTube.
• Other Apps: Browser, Cloud Drive, Note, Palette.
• Power Cord (3 m 1).
• HDMI Cable (3 m 1).
• Remote Control 1.
• Stylus 2.
• Display Bracket 2.
• Wall Mount Bracket WIB9060H 1.
• Wi-Fi Module SI07B 1.
