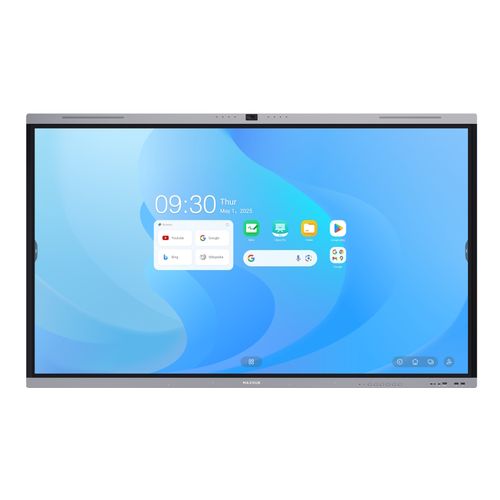

Maxhub U Series Interactive Flat Panel 65'

Interactive Flat Panel Maxhub U Series 65'
The MAXHUB U6540 is a versatile solution for both education and collaborative discussions. Equipped with a Google EDLA Certified operating system, it ensures seamless integration with Google apps and accounts, while the AI-powered SoC ensures smooth performance. The advanced touchscreen enables precise writing, and the powerful AI camera and microphone deliver clear audio and video for seamless interactions. With versatile connectivity options, it simplifies content sharing and enhances collaboration, making it an ideal tool for productive and engaging communication.
Features:

• Prominent Display: 4K display, 10-bit color, High color accuracy, ?E=1.
• SkyWave Sound System: 2.2 channel speaker, 212W+225W maximum.
• Peak Performance: Octa-core CPU, Independent NPU, 16GB RAM, 256GB ROM.
• Precious Touch: MAXHUB Think&Ink Technology 50 touch points 0.5mm touch accuracy.
• Classroom Care: Hardware-grade eye care TV Low Blue Light and Flicker Free certification.
• Advanced Security System: Powered by Android 15 with Google EDLA certification.
• Convenient Connectivity: Full function USB-C, integrate 100W PD, video, audio, touch and internet access features.
• Comprehensive Software Suite: Versatile applications for education and collaboration.

Specifications:

• Model: U6540.
• Diagonal Size: 65 inch.
• Display Area: 1428.48 (H) ? 803.52 (V) mm.
• Aspect Ratio: 16:9.
• Resolution: 3840 (H) ? 2160 (V).
• Viewing Angle: 178 (H/V).
• Screen Level: A-Level.
• Brightness: 500 nits (max.).
• Contrast Ratio: 5,000:1 (typ.), 50,000:1 (dynamic).
• Color Depth: 1.07B (10bit).
• Color Gamut (typ.): 98% sRGB.
• Color Accuracy:.
• Glass: Zero parallax, 3 mm thickness, 9H tempered.
• Surface Technology: Non-glare, 25% haze, Etched-AG Technology.
• Sensors: Ambient light sensor, Ambient color temperature sensor.
• Eyes Care: T?V Flicker Free, T?V Low Blue Light.
• Refresh Rate: 60Hz.
• Response Time: 6.5 ms.
• Backlight Unit: DLED.
• Backlight Life (typ.): 60,000 Hours.
• Touch Technology: Infrared recognition.
• Touch Points: 50.
• Object Recognition Range: 1.5 mm.
• Accuracy: 0.5 mm.
• Response Time: 2.5 ms.
• Writing Height: 1 mm.
• System: MAXHUB Think&Ink (Direct Annotation, Palm Rejection, Sharp Erase, Erase & Write Simultaneously, Multi-level Object Recognition, Single Pen Dual Color).
• OS Compatibility: Windows7/8/10/11, Android, Linux, Mac OS X, Chrome.
• HDMI IN ? 4 ? Up to 4K@60Hz, HDCP 1.4/2.2/2.3, CEC, ARC (HDMI 1).
• USB 2.0 ? 1 ? For system upgrades.
• USB 3.0 ? 4 ? Front ? 2 + Rear ? 2.
• Touch ? 2.
• USB Type-C ? 2 ? Video/audio, touch, charging, LAN sharing (Front: 65W PD; Rear: 100W PD).
• DP IN ? 1 ? 4K@30Hz, HDCP 1.4/2.2/2.3.
• AUDIO IN ? 1 ? 3.5 mm jack.
• RS232 ? 1 ? Baud rate 9600.
• RJ45 IN ? 1 ? 10M/100M/1000Mbps.
• TF Card Port ? 1 ? Expandable up to 1TB.
• HDMI OUT ? 1 ? Up to 4K@60Hz.
• AUDIO OUT ? 1 ? 3.5 mm jack.
• USB Type-C ? 1 ? Type-C OUT.
• SPDIF ? 1 ? PCM output format.
• RJ45 OUT ? 1 ? 10M/100M/1000Mbps.
• OPS Slot: Module slot ? 1.
• Wi-Fi Module Slot: Module slot ? 1 (Wi-Fi Module SI07B).
• Wireless: Wi-Fi 6 (802.11ac/b/g/n/a/ax, 2.4GHz/5GHz), Bluetooth 5.2.
• Operating System: Android 15.0.
• Certification: Google EDLA.
• RAM: 16 GB.
• ROM: 256 GB.
• SoC Process: 8 nm.
• CPU: A76?4 + A55?4 Octa-core, 2.4GHz.
• GPU: Mali-G610 MP4.
• NPU: 6 TOPS.
• Quantity: 1.
• Resolution: 50MP.
• FOV: 115 DFOV, 101 HFOV, 85 VFOV.
• Features: Manual Mode, Auto Framing, Speaker Tracking, Person Counting, Random Election.
• Audio System: SkyWave Sound System.
• Sound Channel: 2.2.
• Speaker Power: 2?8W + 2?18W (output), 2?12W + 2?25W (maximum).
• Sound Pressure Level: 88 dB (1W, 1m).
• Microphone: 8-mic array.
• Pick-up Angle: 180.
• Pick-up Range: 0 ~ 12 m.
• Features: Intelligent Audio Fence, AI Spatial Sound, AEC (Auto Echo Cancellation), ANC (AI Noise Cancellation), AGC (Auto Gain Control).
• Power Supply: AC 100~240V 50/60Hz.
• Standby Consumption: 0.5W.
• Typical Consumption: 70W.
• Power Saving: Energy Star Certification.
• Dimension (L ? H ? D): 1488.4 ? 909.4 ? 97 mm.
• Shipping Dimension (L ? H ? D): 1628 ? 1020 ? 185 mm.
• Thickness (Machine + Wall Mount): 122 mm.
• Wall-hanging Screw: M7 ? 56 mm.
• VESA: No.
• Net Weight: 30.7 kg.
• Gross Weight: 40.5 kg.
• Operating Temperature: 0C ~ 40C.
• Storage Temperature: -20C ~ 60C.
• Operating Humidity: 10% ~ 90% RH.
• Storage Humidity: 10% ~ 90% RH.
• Altitude: Below 5000 meters.
• Dust Resistance: IP5X-rated.
• Power Cord (3 m ? 1).
• HDMI Cable (3 m ? 1).
• Remote Control ? 1.
• Stylus SW13F ? 2.
• Display Bracket ? 2.
• Wall Mount Bracket WIB9060K ? 1.
• Wi-Fi Module SI07B ? 1.
• OS: MAXHUB EDU OS V4.
• Whiteboard Tool: MAXHUB Class Pro.
• Screen Sharing: MAXHUB Connect.
