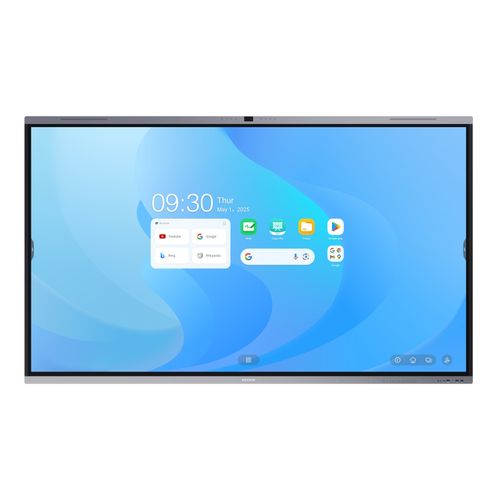

Maxhub U Series Interactive Flat Panel 86'

Interactive Flat Panel Maxhub U Series 86'
The MAXHUB U8640 is a versatile solution for both education and collaborative discussions. Equipped with a Google EDLA Certified operating system, it ensures seamless integration with Google apps and accounts, while the AI-powered SoC ensures smooth performance. The advanced touchscreen enables precise writing, and the powerful AI camera and microphone deliver clear audio and video for seamless interactions. With versatile connectivity options, it simplifies content sharing and enhances collaboration, making it an ideal tool for productive and engaging communication.
Features:

• Prominent Display: 4K display, 10-bit color, High color accuracy, ?E=1.
• SkyWave Sound System: 2.2 channel speaker, 212W+225W maximum.
• Peak Performance: Octa-core CPU, Independent NPU, 16GB RAM, 256GB ROM.
• Precious Touch: MAXHUB Think&Ink Technology 50 touch points 0.5mm touch accuracy.
• Classroom Care: Hardware-grade eye care TV Low Blue Light and Flicker Free certification.
• Advanced Security System: Powered by Android 15 with Google EDLA certification.
• Convenient Connectivity: Full function USB-C, integrate 100W PD, video, audio, touch and internet access features.
• Comprehensive Software Suite: Versatile applications for education and collaboration.

Specifications:

• Model U8640.
• Diagonal Size (inch) 86.
• Display Area 1895.04 (H) 1065.96 (V) mm.
• Aspect Ratio 16:9.
• Resolution 3840 (H) 2160 (V).
• Viewing Angle 178 (H/V).
• Screen Level A-Level.
• Panel Brightness 500 nits (max.).
• Contrast Ratio 1,200:1 (typ.) 50,000:1 (dynamic).
• Color Depth 1.07B (10bit).
• Color Gamut (typ.) 98% sRGB.
• Glass Zero parallax 3mm thickness 9H tempered.
• Surface Technology Non-glare, 25% haze Etched-AG Technology.
• Sensor Ambient light sensor Ambient color temperature sensor.
• Eyes Care TV Flicker Free TV Low Blue Light.
• Refresh Rate 60Hz.
• Response Time 8ms.
• Backlight Unit DLED.
• Backlight Life (typ.) = 60,000 Hours.
• Touch Technology Infrared recognition.
• Touch Point 50 Points touch.
• Object Recognition Range 1.5 mm.
• Accuracy 0.5 mm.
• Response Time = 2.5 ms.
• Writing Height = 1 mm.
• MAXHUB Think&Ink Direct Annotation / Palm Rejection / Sharp Erase / Erase and Write Simultaneously / Multi-level Object Recognition / Single Pen Dual Color.
• System (Touch Return) Windows1/Windows0/Windows/Windows/ Android/Linux/Mac OS X/Chrome.
• Input HDMI IN 4 Up to 4K@60Hz, HDCP 1.4&2.2&2.3, CEC, ARC (HDMI 1).
• USB 2.0 1 For system upgrades.
• USB 3.0 4 Front2 + Rear2.
• Touch 2 3.02.
• USB Type-C 2 Video and audio transmission, touch, charging, LAN network sharing.
• Front: up to 65W PD; Rear: up to 100W PD.
• DP IN 1 4K@30Hz, HDCP 1.4&2.2&2.3.
• AUDIO IN 1 3.5mm jack.
• RS232 1 Baud rate 9600.
• RJ45 IN 1 10M/100M/1000Mbps.
• TF Card Port 1 Expandable up to 1TB.
• Output HDMI OUT 1 Up to 4K@60Hz.
• AUDIO OUT 1 3.5mm jack.
• USB Type-C 1 Type-C OUT.
• SPDIF 1 PCM output format.
• RJ45 OUT 1 10M/100M/1000Mbps.
• OPS Slot Module slot 1.
• Wi-Fi Module Slot Module slot 1 Wi-Fi Module (SI07B).
• Wi-Fi 6 supported 802.11ac/b/g/n/a/ax, 2.4GHz/5GHz.
• Bluetooth 5.2.
• Operating System Android 15.0.
• Certification Google EDLA certification.
• RAM 16 GB.
• ROM 256 GB.
• SoC Process 8 nm.
• CPU A764+A554 Octa-core, 2.4GHz.
• GPU Mali-G610 MP4.
• NPU 6 TOPS.
• Quantity 1.
• Resolution 50MP.
• FOV 115 DFOV, 101 HFOV, 85 VFOV.
• Feature Manual Mode Auto Framing Speaker Tracking Person Counting Random Election.
• Audio System SkyWave Sound System.
• Sound Channel 2.2.
• Speaker Power 28W+218W (output) 212W+225W (maximum).
• Sound Pressure Level 88 dB (1W, 1m).
• Microphone Quantity 8-mic array.
• Pick-up Angle 180.
• Pick-up Range 0~12 m.
• Feature Intelligent Audio Fence AI Spatial Sound AEC (Auto Echo Cancellation) ANC (AI Noise Cancellation) AGC (Auto Gain Control).
• Power Supply AC 100~240V 50/60Hz.
• Power Consumption (standby) = 0.5W.
• Power Consumption (typ.) 100W.
• Power Saving Energy Star Certification.
• Dimension (LHD) 1957 1172.7 97 mm.
• Shipping Dimension (LHD) 2110 1291 185 mm.
• Thickness of Machine and Wall Mount 122 mm.
• Wall-hanging Screw M756 mm.
• VESA No.
• Net Weight 51.9 kg.
• Gross Weight 66.5 kg.
• Operating Temperature 0C~40C.
• Storage Temperature -20C~60C.
• Operating Humidity 10%~90%RH.
• Storage Humidity 10%~90%RH.
• Altitude Below 5000 meters.
• Dust Resistance IP5X-rated.
• Power Cord 3 m 1.
• HDMI Cable 3 m 1.
• Remote Control 1.
• Stylus SW13F 2.
• Display Bracket 2.
• Wall Mount Bracket WIB9060K 1.
• Wi-Fi Module SI07B 1.
• OS MAXHUB EDU OS V4.
• Whiteboard Tool MAXHUB Class Pro.
• Screen Sharing MAXHUB Connect.
• Device Management MAXHUB Pivot.
• Google Apps: Google Play, Google Drive, Google Meet, Google map, YouTube, etc..
• Other Apps: Browser, Cloud Drive, Note, Palette,.
