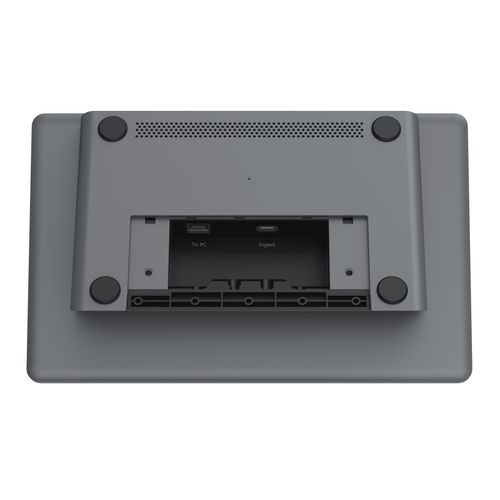

Maxhub Universal Touch Console

Console Maxhub Universal Touch
MAXHUB Universal Console TCP33T is a supporting product of Microsoft Surface Hub to implement multi-touch console solution and enhance your conference control experience. It is equipped with an 11.6-inch touch screen, slim bezel design, anti-fingerprint and anti-glare surface treatment processes, with the function of sharing content on the Surface Hub screen.
Features:

• One-Cable Technology:Easy and flexible installation with a single cable between the IFP and touch console.
• Motion Sensor:Automatically sleeps or wakes the room display based on inactive/active HDMI video signals to save energy.
• Content Sharing:Share content on the IFP using a USB-C cable.
• PoE Power:Supports standard power supply and data transmission.

Specifications:

• TCP33T Universal Console: 1.
• UD20A Interface Converter: 1.
• PoE Adapter: 1.
• Package Dimension (4 pieces):590 440 280 mm / 23.23 17.32 11.02 inch.
• Package Weight:4.6 kg / 10.14 lbs.
• Display.
• Size:11.6 inch.
• Resolution:1920 1080.
• Refresh Rate:60 Hz.
• Back Light Unit:ELED.
• Brightness With Glass:250 nits (Min.), 300 nits (Max.).
• Lifespan:= 20000 hours.
• Touch System.
• Type:Capacitive touch.
• Surface Treatment:Anti-fingerprint, Anti-glare.
• Sensor.
• Motion Sensor:PIR sensor for automatic wake-up.
• Ultrasound Emitter:Supported.
• Environmental Condition.
• Operating Temperature:0C ~ 40C / 0F ~ 104F.
• Operating Humidity:10% ~ 90% RH.
• Storage Temperature:-20C ~ 60C / -4F ~ 140F.
• Storage Humidity:10% ~ 90% RH.
• Altitude:Below 5000 m.
• Physical Specification.
• Product Dimension (L W H):278 164 82 mm / 11 6.4 3.2 inch.
• Product Weight:1.16 kg / 2.56 lbs.
• I/O Port.
• USB-C (Content Sharing): 1.
• RJ45:For connecting PoE adapter or MAXHUB XBoard V7 Teams Room.
• Kensington Slot: 1.
• Standard Accessories.
• Power Cord: 3.
• Ethernet Cable (7.5 m / 24.6 ft): 2.
• UD20A Interface Converter: 1.
• PoE Adapter (Output: 54V, 0.56A, 30.24W): 1.
• Type-C Cable (1.8 m / 5.9 ft): 1.
• Quick Start Guide: 1.
• Screwdriver: 1.
