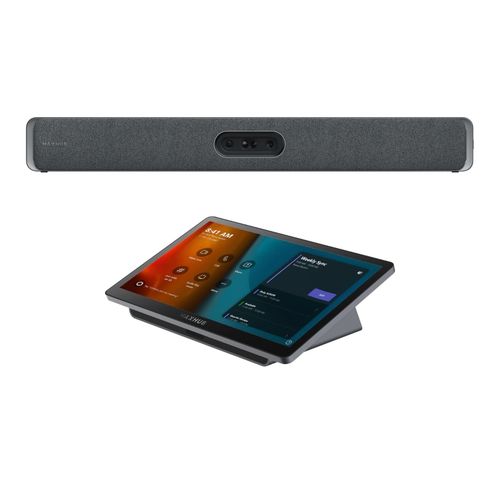

Maxhub Xbar MS Videobar W70 Kit

Availability: Available
Product #: 035103900
Brand: Maxhub
MPN: W70

$6,355.78

Product Description

Video Bar Maxhub MS Xbar W70 Kit
MAXHUB XBar W70 delivers the unmatched video and audio experience customers have come to expect. In addition, new capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrationsfurther removing the barriers to usage and deployment of video in medium to large-sized rooms. The W70 is a quad-camera bar with integrated speakers and microphones. It offers sophisticated camera and audio technologies that bring AI director capabilities to medium to large-sized rooms.
Features:

200MP Camera SystemUltra-high-resolution camera system redefines image clarity and spatial adaptability.
Quad Sight LensUltra-wide 125 HFOV.
Dual telephoto lens for close-up tracking.
AI-Powered TechnologyAuto Framing, Speaker Tracking, Smart Gathering, Intelligent Focus.
AI Noise ReductionNoise Reduction, Echo Cancellation, Anti-Reverberation, AGC Algorithm.
Extended CapabilityCan connect to both third-party device and exclusive MAXHUB device.
Studio-Grade Dual SpeakersDual 20W, Stereo Sound, Full Frequency, Quad Passive Radiator.
BYOD ModeConnect to your PC with a single USB cable for BYOD meeting.
Cloud Device ManagementRemotely monitor device status through cloud-based service (MAXHUB Pivot) via an internet connection.

Specifications:

Camera.
Quantity: 4.
Pixel: 50MP 4.
Sensor: 1/1.55 inch.
Aperture: F/2.4.
Resolution & Frame Rate: H.264 / MJPEG: 38402160, 25601440, 19201080, 1280720, 1024576, 960540, 800600, 640360 YUY2: 19201080, 1280720, 640360.
Zoom: 8x Hybrid Zoom.
Wide Camera FOV: 130 (D), 125 (H), 50 (V).
Telephoto Camera FOV: 52 (D), 42 (H), 32 (V).
Privacy Shutter: Electrical and automatic lens shutter.
AI Features (Camera).
Auto Framing.
Speaker Tracking.
Intelligent Focus.
Smart Gathering.
Video Fence.
Speaker.
Quantity: 2.
Sound Channel: 2.0.
Total Power: 20W + 20W.
Max Sound Pressure: 88 dB (+/-2 dB) SPL@1W/0.5m.
Frequency Range: 80 Hz ~ 20 KHz.
Microphone.
Quantity: 16-mic array.
Pickup Range: 10 m.
Frequency Range: 20 Hz ~ 16 KHz.
Sensitivity: -36 1 dBFS.
Sampling Rate: 48 KHz.
Expansion: Supports 2 expansion microphones.
AI Features (Audio).
Noise Reduction.
Echo Cancellation.
Anti-Reverberation.
AEC (Acoustic Echo Cancellation).
ANS (Automatic Noise Suppression).
AGC (Automatic Gain Control).
Full-duplex.
Touch Console TCP31T.
Size: 11.6 inch.
Resolution: 1920 1080.
Refresh Rate: 60 Hz.
Backlight Unit: ELED.
Brightness With Glass: 250 nits (Min.), 300 nits (Max.).
Life Time: = 20000 hours.

General

Manufacturer

Maxhub

Brand

Maxhub

MPN

W70

All Supplier Codes

MHW70

Barcodes

6927433608198

GTIN

6927433608198

Information on technical characteristics, the delivery set, the country of manufacture and the appearance of the goods is for reference only and is based on the latest information available at the time of publication.
