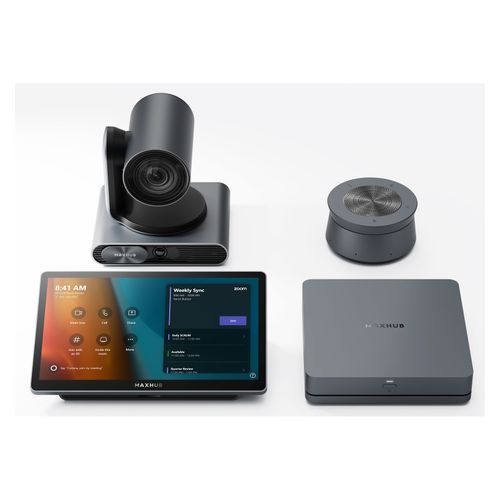

Conference Room Kit Maxhub MTR XT20-PS TeamsMAXHUB XT20-PS Kit is a Microsoft Teams certified video conferencing solution designed for medium to large meeting rooms. It includes a 12x optical zoom camera, a flexible omni-directional table speakerphone bundles, a touch control panel, and a mini-PC running Microsoft Teams Rooms software for seamless collaboration. With high-quality audio, video, and content sharing capabilities, it offers a comprehensive and user-friendly video conferencing experience.Features:
One Cable Technology: One Cat5e/Cat6e cable between mini-PC and touch console to make it work.
4K Content Sharing: Share your content at up to 4K resolution through HDMI in port on XC25T mini-PC.
Wireless Content Sharing: Share your content in teams room with MAXHUB wireless dongle or MAXHUB Share App.
AI Powered Video: Camera presets, Auto framing, Speaker tracking, Presenter tracking.
AI Noise Reduction: Automatically remove background noise and enhance the audio quality.
Multiple Console: Support up to 2 console to control simultaneously, better experience for larger space.
High Integration: Easy to connect with third-party control system: Crestron, Extron, Q-sys , Kramer.
Cloud Device Management: With pre-installed MAXHUB Pivot, IT manager could easily maintain and update XCore Kit Pro without leaving their desk.
Specifications:
XT20-PS Kit Package Includes: XC25T Mini-PC x1, TCP30T Touch Console x1, UC P30 Camera x1, UC BM45 Speakerphone x 1.
Mini-PC XC25T:.
Device Type Mini-PC.
CPU Intel Core i5-1240P Processor.
Memory 16GB DDR4.
Storage 256 GB.
Graphic Intel UHD Graphics for 12th Gen Intel Processors.
Network 1000Mbps RJ45.
Wi-Fi Wi-Fi 6.
Support Bluetooth 5.1.
Operating System Windows 11 loT Enterprise SAC.
Application Microsoft Teams Room.
Touch Console TCP30T:.
Size 11.6 inch.
Resolution 1920 1080.
Frequency Refresh Rate 60Hz.
Back Light Unit ELED.
Brightness with Glass Min.250cd/m, Typ.300cd/m.
Life Time = 20000 Hours.
UC P30:.
Image Sensor Sony 4K , 8.42M pixel.
Video Outputs (USB 3.0) H.264/MJEPG up to 2160p@30fps, YUV up to 1080p@30fps.
Video Outputs (USB 2.0) H.264/MJEPG up to 1080p@30fps.
Optical Zoom 12 x.
Digital Zoom 16 x.
FOV DFOV 90/ HFOV 80/ VFOV 49.2.
Motorized Pan & Tilt Pan: 170, Tilt: 90.
UC BM45:.
Microphone Quantity 8.
Voice Pick-up Range Best 4 m (13.1 ft) ,maximum 8 m (26.2 ft).
Microphone Frequency Range 100-10 kHz.
Speaker Output Power (Maximum) 5W.
Sound Pressure Level 82db@1m.
Speaker Bandwidth 100Hz~20kHz.
AI Noise Reduction Yes.
Full Duplex Communication Yes.
Auto Gain Control (AGC) Yes.
Auto Echo Cancellation (AEC) Yes.
Specifications
General
Manufacturer
Maxhub
Brand
Maxhub
MPN
XT20-PS Kit
All Supplier Codes
MHXT20PSKIT
Barcodes
GTIN
Information on technical characteristics, the delivery set, the country of manufacture and
the appearance
of the goods is for reference only and is based on the latest information available at the
time of publication.
