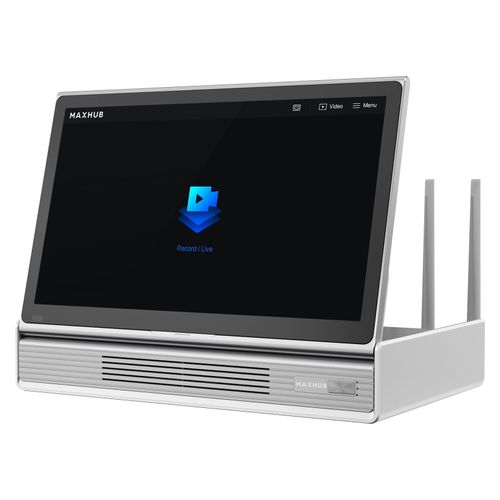

Maxhub Mobile Capture Host

Capture Host Maxhub Mobile CSP50
The CSP50 Portable Capture Host is a powerful, all-in-one portable recording and production device. Designed to meet the demands of professionals on the move, this all-inone device combines cutting-edge technology with user-friendly features, making it the ideal solution for educational sessions, corporate trainings, and live events. With unparalleled ease of use and reliability, the CSP50 guarantees a seamless and professional experience every time.
Features:

• Intuitive Touch Control:Manage your cameras and switch scenes with ease.Responsive touchscreen interface for greater operational efficiency.
• Wireless Deployment:Flexible setup without complex cabling.
• Extended Battery Endurance:Enjoy up to 6 hours of continuous use.Automatic overheat protection for peace of mind during long sessions.
• High-Reliability Storage:Featuring durable SSD storage.Withstands frequent movement and rough handling to keep your data safe and sound.

Specifications:

• Operating System: Linux.
• Diagonal Size (inch): 15.6.
• Brightness: 250 nits.
• Resolution: 1920 ? 1080.
• Backlight Unit: ELED.
• Color Gamut: 72% NTSC.
• Viewing Angle: > 170.
• Refresh Rate: 60 Hz.
• Mean Time Between Failures (MTBF): ? 250,000 Hours.
• Glass: 7H Tempered.
• Screen Type: Capacitive touch screen.
• Touch Point: 10 Points touch.
• CPU: A76?4 + A55?4.
• GPU: Mali-G610 MP4.
• NPU: 6 TOPs.
• RAM: 8GB.
• Storage: 512GB SSD.
• Video Recording Resolution: 4K@30fps, 1080p, 720p, VGA, QVGA.
• Video Recording Frame Rate: 60fps/ 30fps/ 25fps.
• Video Recording Format: MP4.
• Multi-Channel Recording: Up to 7 channels.
• Live Streaming Channel: Up to 3 RTMP channels, 1080p.
• Live Streaming Resolution: 1080p, 720p, VGA, QVGA.
• DC In ?1.
• RJ45 ?5 (one for Internet, one for Mic in, three for PoE).
• HDMI Out ?3.
• HDMI In (HDMI 1.4) ?2.
• USB-A 3.0 ?2.
• USB Type-C ?1.
• RS422 ?1.
• Mic In ?1.
• Line In ?1.
• Line Out ?2.
• Power Button ?1.
• Frequency: 2.4GHz, 5GHz, 5.8GHz.
• Wi-Fi: 802.11ac/b/g/n/a/ax (Wi-Fi 6 supported).
• Bluetooth: 5.2.
• Power Adapter: 100-240~50/60HZ 2.0A Max.
• Power Supply: DC 24V 4.0A.
• Power Consumption (Max): 60W.
• Power Consumption (Standby): 0.5W.
• Dimension (Raised Position, L ? W ? D): 385.2 ? 255 ? 290.8 mm.
• Dimension (Lowered Position, L ? W ? D): 385.2 ? 255 ? 70 mm.
• Shipping Dimension (W ? H ? D): 487 ? 163 ? 358 mm.
• Net Weight: 6.5 Kg.
• Gross Weight: 8.3 Kg.
• Operating Temperature: 0C ~ 40C.
• Storage Temperature: -20C ~ 60C.
• Operating Humidity: 10% ~ 90% RH.
• Storage Humidity: 10% ~ 90% RH.
• Altitude: Below 5000 meters.
• Power Adapter ?1.
• Power Cable ?1.
• Phoenix Connector ?2.
• Antenna Adapter Cable ?1.
• External Antenna ?5.
